Stackable Incubated Shakers

Inquire product

Structural Functional Features

  • Large-capacity triple stackable incubated shaker.
  • Up to 80°C, 400rpm enables experimental conditions for various applications.
  • Three operating modes: Temperature & Shaking, Temperature, or Shaking.
  • Shaking structure with minimized vibration.
  • Convenient to change samples with glide-up door.
  • Stable shaking of high-load samples. (registration KR 10-1678160)
  • Applied a direct drive motor that has outstanding durability, a 5-year warranty for the motor.

Use Convenience Features

  • Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
  • Monitor via mobile app anytime, anywhere with LC Connected.
    (mobile monitoring system) (when purchased LC GreenBox)
  • Countdown timer (999 hours 59 minutes) of shaking operation.

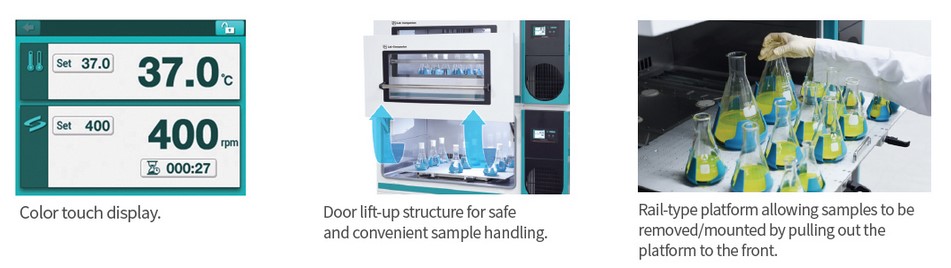

  • Intuitive operation with color touch display.
  • High brightness / low-power LED illumination makes it easy to observe inside.
  • Spill drain port for internal cleanliness and easy maintenance.

Outstanding Safety

  • Electronic over temperature protection system. (A-OT, advanced over temperature limiter)
    Independent precision temperature sensor and controller provides more secure and reliable over temperature protection.
  • Conventional over-temperature protection system. (B-OT, backup over temperature limiter)
    A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
  • Soft start and stop shaking function.
  • Malfunction prevented by controller lock function.
  • Displays all information such as device operation and error occurrence.
  • Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.

Outstanding Safety

  • Electronic over temperature protection system. (A-OT, advanced over temperature limiter)
    Independent precision temperature sensor and controller provides more secure and reliable over temperature protection.
  • Conventional over-temperature protection system. (B-OT, backup over temperature limiter)
    A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
  • Soft start and stop shaking function.
  • Malfunction prevented by controller lock function.
  • Displays all information such as device operation and error occurrence.
  • Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.

Smart Self-diagnosis

Real-time self-diagnostics to check equipment for abnormal conditions.

  • Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
  • Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
  • Automatic restart as it was operated after power recovery.
Technical Specifications
Model ISS-7100 ISS-7100R ISS-7200 ISS-7200R
Temperature Range (℃ / ℉) 1) Amb. +10 to 80

/ Amb. +18 to 176

 Amb. -20 (Min. 4) to 80

/Amb. -36 (Min. 7.2) to 176

 Amb. +10 to 80

/Amb. +18 to 176

 Amb. -20 (Min. 4) to 80

/Amb. -36 (Min. 7.2) to 176
Fluctuation at 37℃ in flask

(±℃ / ℉)

 0.1 / 0.18
Variation at 37℃ in flask

(±℃ / ℉)

 0.6 / 1.08 0.5 / 0.90 0.6 / 1.08 0.5 / 0.90
Refrigerator (Hp) - 1/6Hp - 1/6Hp
Shaking system Motion type Orbital
Speed range (rpm) 30 to 400 (stackable2) : 30 to 250)  30 to 300 (stackable2) : 30 to 200)
Max. speed
per permissible load (rpm)		 1 unit only
400 (max. 20 kg / 44.1 Ibs)		 1 unit only
400 (max. 20 kg / 44.1 Ibs)
Stacked units
250 (max. 15 kg / 33.1 Ibs)
150 (max. 20 kg / 44.1 Ibs)		 Stacked units
200 (max. 15 kg / 33.1 Ibs)
150 (max. 20 kg / 44.1 Ibs)
Amplitude size (mm / inch, dia.) 25.4 / 1 50.8 / 2
Speed stability 2)(rpm, %) ±1 ±1
Timer (count-down) 999 hr 59 min. 999 hr 59 min.
Dimension Chamber volume (L / cu ft) 198 /7.0
Platform (W×D, mm / inch) 755×520 / 29.7x20.5
Interior (W×D×H, mm / inch) 809×624×393 / 31.9×24.6×15.5
Exterior (W×D×H, mm / inch) 3) 1 unit ; 1307 x 996 x 755 / 51.5 x 39.2 x 29.7
1 unit+stand-I or 2 units stacked ; 1307 x 996 x 1355 / 51.5 x 39.2 x 53.3
2 units+stand-II stacked ; 1307 x 996 x 1655 / 51.5 x 39.2 x 65.2
3 units stacked ; 1307 x 996 x 1955 / 51.5 x 39.2 x 77.0
Net weight (kg / Ibs) 300 / 661.4 320 / 705.5 300 / 661.4 320 / 705.5
Electrical requirements (230V, 50/60Hz) 3.7A 5.6A 3.7A 5.6A
Cat. No. AAH238132K AAH238232K AAH239132K AAH239232K
Electrical requirements (120V, 60Hz) 7.1A 10A 7.1A 10A
Cat. No. AAH238115U AAH238215U AAH239115U AAH239215U

1) The temperature control range of the ISS-7100 and ISS-7200 models are from 10°C above the ambient temperature of the equipment. (15°C to 40°C) to 80°C The temperature control range of the ISS-7100R and ISS-7200R models are from 20°C below the ambient temperature (18°C to 35°C) of the device to 80°C. (However, the lowest control temperature is 4°C)
2) Actual rpm allowable error for set rpm is 1rpm if setting is less than 100rpm, ±1% if setting is higher than 100rpm.
3) Product height: 600mm, height of Stand I: 600mm, height of Stand II: 300mm, height of wheel attachment: 155mm.
