Model SK-350TV / TVS – Vacuum Equipped

Inquire product

High-Speed Lab Mixer is a device that can agitate materials without using agitator blades and deaerate simultaneously. As a result, it is possible to uniformly agitate even high-viscosity materials in a very short time.

A Vacuum Equipped model with individual revolution and rotation speed control system!!

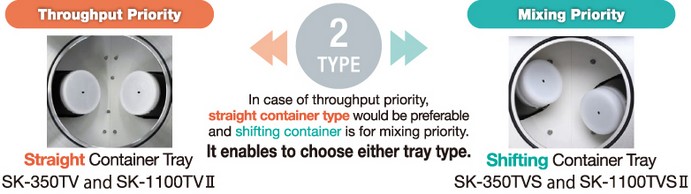

2 types of cup trays:

  • Straight (SK-350TV)
  • Shifted (SK-350TVS)

While the straight type prioritizes throughput of materials, the shifted type offers improved mixing capability as compared to the straight type by increasing the contact part between the container inner wall and material.

* The effect differs depending on the material. Select the type according to the required throughput and mixing performance.

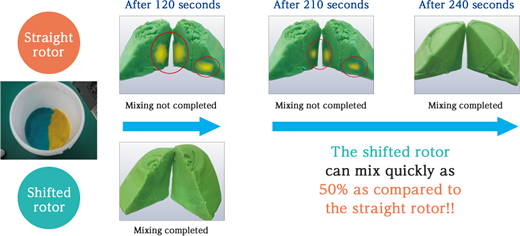

Comparison of mixing times (straight rotor vs. shifted rotor)

Equipped with a vacuum machine for enhanced degassing performance!

The vacuum machine makes it possible to eliminate even very finer air bubbles, so it can be expected to even further improve the conductivity and insulation performance demanded of electronic materials, reduce the rate of defective products due to bubbles in optical materials and prevent injection of air due to air bubbles in syringes.

mode-f
Technical specifications
Cup size
400ml × 2 , Maximum 350g (Gross Weight)
Other containers
Multiple containers and syringes can be used by using an adapter.
Speed of revolution
Settable in 9 steps
Speed of revolution Settable in 10 steps
Time of setting
10-300 sec. (in units of 10 sec.)

Step mode
Continuous operation with 5 different operation patterns (condition settings)
Memory channels
90 User settable channels
10 Fixed data channels
Power supply voltage
Single phase AC 200 ~ 240VAC 50/60Hz

Power consumption
2,000W (including vacuum pump)

External dimensions (WxDxH)
565 x 682 x 725 mm

Weight
Approx. 160kg
Applications
  • - Battery manufacturers
  • - Electronic parts manufacturers
  • - Adhesive manufacturers
  • - Pigment and high functional material manufacturers
  • - Ceramic industry
  • - Defense and aerospace industry
  • - Cosmetic industry
  • - Medical and pharmaceutical industry
  • - Dental industry
