Benchtop Incubated Shakers

Inquire product

Digital incubating/ refrigerating benchtop shakers with optional dedicated platform and universal attachment.

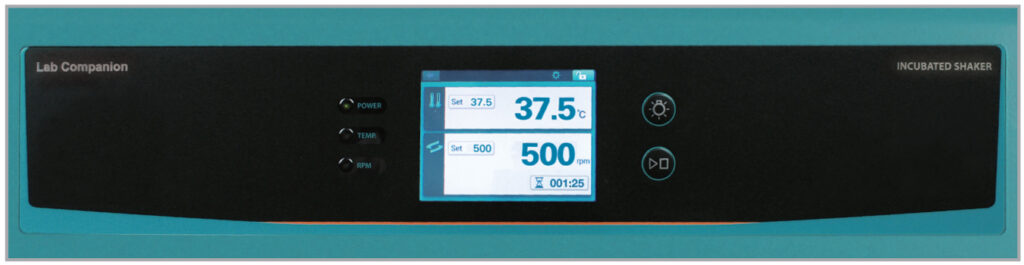

Control display

Performance

  • Temperature range:
    – Ambient +5°C to 80°C for IST-3075 / 4075.
    – Ambient -15°C (Min. +15) to 80°C for IST-3075R / 4075R.
  • Competitive high shaking speed up to 500 rpm.
  • Orbital shaking motion in 19mm diameter.
  • Microprocessor PID control.
  • Three point temperature calibration / Automatic tuning.
  • Wide speed range even with heavy workload.
    – Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
  • Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
    – Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
  • Pleasant test environment by the smooth acceleration and deceleration control.
    – Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
  • High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
  • Air-tight silicone door seal to provide excellent temperature uniformity

Convenience

  • Intuitive touch screen LCD controller with easy icons and logical menus.
  • Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
  • Wide sample monitoring and convenient sample loading.
    – Convenient sample monitoring without affecting inside environment thanks to the three side transparent acryl lid with bright LED lamps.
    – Gas spring lid supports providing smooth motion, soft opening and closing.
  • Repetitive task can be easily performed as the platform stops where it starts.
    – Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
  • Corrosion resistance stainless steel interior.
  • Built-in RS-232 port and USB port for external control and data collection.
  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

Safety

  • Automatic run after power interruption.
  • Temperature and shaking speed deviation alarm.
  • Over-current protection, Stalled platform check.
  • Mechanical over-temperature protection device.
  • Environment-friendly CFC-free refrigerant. (for IST-3075R / 4075R)
Technical Specifications
Model
IST-3075
IST-3075R
IST-4075
IST-4075R
Temperature
Range (℃ / ℉)
Amb. +5 to 80
/ Amb. +9 to 176
Amb. -15 (Min. +15) to 80
/Amb. -27 (Min. +27) to 176
Amb. +5 to 80
/ Amb. +9 to 176
Amb. -15 (Min. +15) to 80
/Amb. -27 (Min. +27) to 176
Fluctuationat 37℃ in flask (±℃ / ℉)
0.1 / 0.18
Variationat 37℃ in flask (±℃ / ℉)
0.5 / 0.90
Refrigerator (Hp)
-
1 / 6 HBP
-
1 / 6 HBP
Shaking system
Motion type
Orbital
Amplitude size (mm / inch, dia.)
19.1 / 0.75
Speed range (RPM)
20 to 500
Accuracy
±1% of set speed (≥100rpm) / ±1 (≤100rpm)
Timer
1 min. to 999 hr 59 min.
Max. load (kg / Ibs)
10 / 22.0 at 500 rpm15 / 33.1 at 400 rpm
14 / 30.9 at 500 rpm21 / 46.3 at 400 rpm
Dimension
Volume (L / cu ft)
53 / 1.9
83 / 2.9
Platform (W×D) (mm / inch)
350×350 / 13.8×13.8
450×450 / 17.7×17.7
Interior (W×D×H) (mm / inch)
410×410×320 / 16.1×16.1×12.6
510×510×320 / 20.1×20.1×12.6
Exterior (W×D×H) (mm / inch)
440x785x510 / 17.3x30.9x20.1
540x 890 x510 / 21.3x35x20.1
Net weight (Kg / lbs)
65 / 143.3
73 / 160.9
81 / 178.6
90 / 198.4
Electrical requirements (230V)
60Hz, 4A
50Hz, 4A
60Hz, 5.5A
50Hz, 5.5A
60Hz, 4A
50Hz, 4A
60Hz, 5.5A
50Hz, 5.5A
Cat. No.
AAH 23422K
AAH 23422K
AAH2 3522K
AAH 23522K
AAH 23622K
AAH 23622K
AAH 23722K
AAH2 3722K
Electrical requirements (120V)
60Hz, 7.5A
60Hz, 10.1A
60Hz, 7.5A
60Hz, 10.1A
Cat. No.
AAH23465U
AAH23565U
AAH23665U
AAH23765U
